Expert Tips for Easy Drywall Corner Bead Installation

Drywall corner beads are a critical component in achieving clean, durable corners and edges in drywall finishing. Ideally made of vinyl, corner beads provide reinforcement and enhanced aesthetics to vulnerable corners. Their integration is key to quality results.

When should corner beads be utilized? Virtually any time edges meet at an angle, whether around windows, doorways, wall intersections or column encasements. This protects corners from damage while allowing advanced designs not possible with compound alone.

Vinyl corner beads have surged in popularity over old metal beads for their flexibility, sustainability and finishing capability. Major manufacturers offer purpose-built vinyl profiles catering to every finishing need.

Proper Prep Work Sets the Stage

Like most projects, proper planning and prep work is half the task when installing drywall corner beads. This starts by ensuring framing corners are clean, dry and ready for finish application. Check for protruding screws, staples or other obstructions.

The bead itself should also be pre-cut and test fitted before adhesion. Account for 1⁄2-inch ground clearance. Take time fitting pieces and mitering angles to suit corners. Use chalk lines to ensure bead alignment. Once satisfied, ensure you have adhesive, a taping knife, a stapler and staples handy before kicking off installation.

Must-Have Tools for Corner Bead Jobs

Installing corner beads requires minimal specialty tools. Common taping knives, a stapler and drywall adhesive are the basics. Here’s a short list:

  • Utility knife and straight-edge

  • Chalk line

  • Taping knives (4 to 6 inches)

  • Trim-Tex 847 Spray Adhesive

  • Heavy duty stapler

  • 1⁄2-inch staples

  • Hammer (if needed)

  • Inside corner tool (for 3-way connections)

Choosing the Right Bead Design

Many corner bead profiles cater to different needs. Flexible vinyl designs conform well to uneven corners. More rigid, sharp profiles excel for ultra-smooth, level-five finishes. Unique styles like chamfers build out corners, creating depth and shadow lines. Bullnose profiles ease sharp corners. The varieties are endless.

Consider what finished look you’re after, along with expected traffic patterns, vulnerability and corner complexity. A textured knockdown finish around concrete columns needs less reinforcement than hospital room corners getting routine cart bumps. Exterior corners warrant extra water protection as well. Match your corner bead design to the demands and aesthetics of each job.

Installing Standard Drywall Corner Beads

Once your workspace is prepped and tools are laid out, follow these basic steps for flawless standard corner bead integration:

  • Before installation, measure, cut and dry fit the bead, leaving a ½-inch gap at the base if flooring has not yet been installed.

  • Apply adhesive coating to the corner bead and edge of the drywall per manufacturer specs.

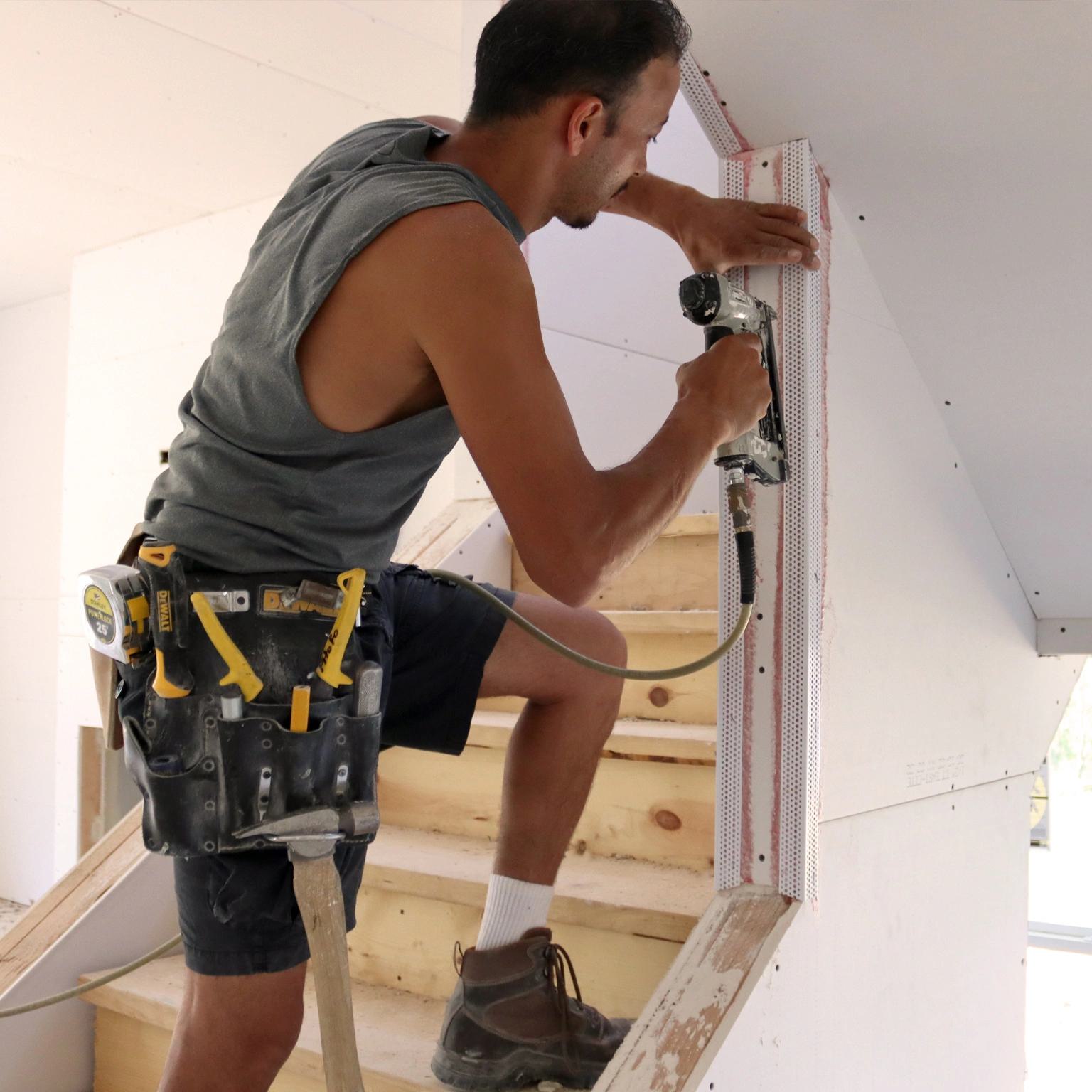

  • Firmly press the bead into the corner, seating the legs/flanges flush against the drywall. Apply even pressure.

  • Secure the bead with 1⁄2-inch staples, evenly spaced every 6 to 8 inches on both flanges/legs. Hammer down any protruding staple legs.

  • Further adhesion and water resistance can be achieved by running a thin coat of drywall compound over the legs and flanges up to the nose return.

  • Allow adhesion to fully cure before finishing with multiple coats of compound over the legs/flanges, feathering out from the corner. Avoid overloading the nose. Trim Tex corner bead products are designed to minimize the need for excessive adhesion application, ensuring efficient and economical finishing for drywall corners.

  • Light sanding between coats ensures smoothness.

To view our installation guides and our how-to videos for corner bead installation, click here.

Find the Best Drywall Corner Beads with Trim-Tex


Installing corner beads can be tricky — choose wrong, and you’re left with lackluster finishes or short-term cracking. Get it right from the start by selecting top-quality corner bead brands like industry pioneer Trim-Tex. With 200+ profiles invented over 50+ years solely focused on drywall, they intimately understand the frustration behind finishing complex corners.

Trim-Tex corner beads are rigorously tested to be durable while being installed quickly and cleanly. Vinyl solutions like our Bullnose, Rigid Jumbo Low Profile Bead and Chamfer bead transform basic drywall into distinct designs. Eliminate missteps and reliance on outdated metal beads.

Stumped on which corner bead suits your project? Connect with your localTrim-Tex dealer or our award-winningTrim-Tex customer service team to break down the ins and outs. Our award-winning reps obsess over the small stuff, so you don’t have to.
